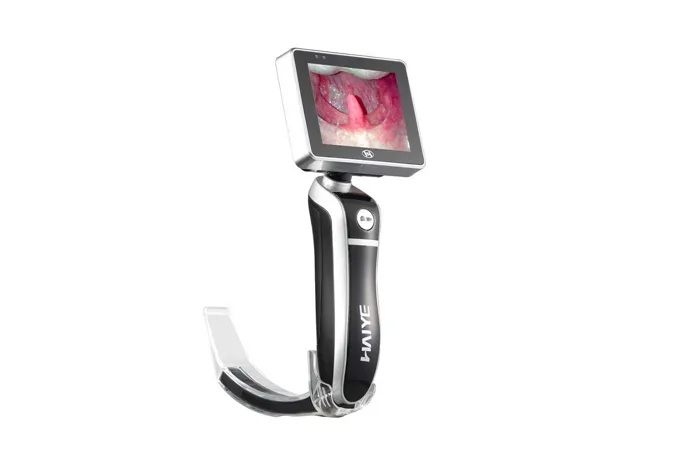

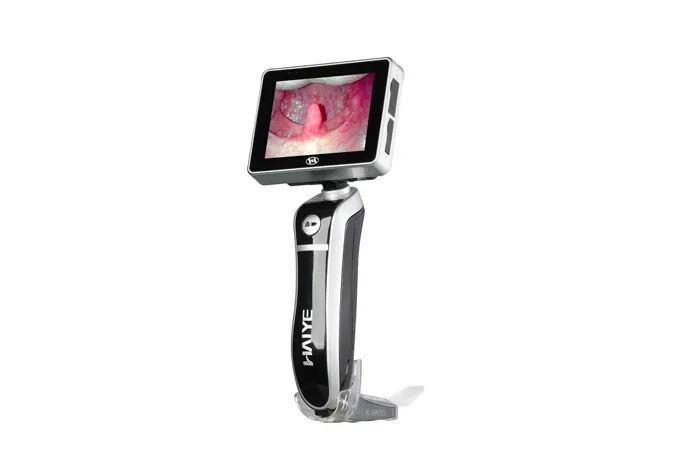

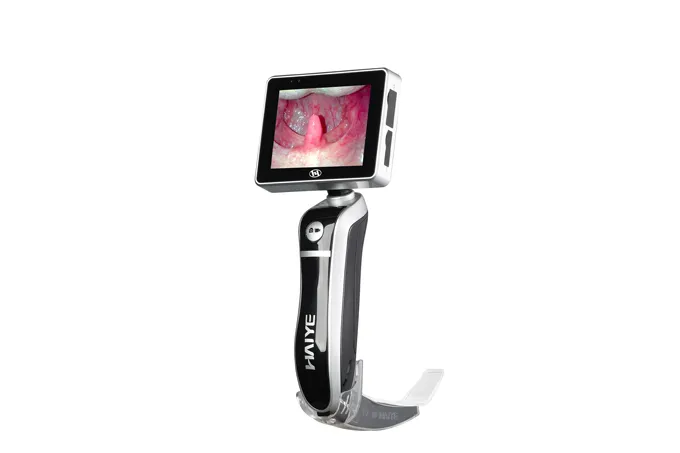

Haiye HYHJ-1330 Series Disposable Video Laryngoscope

This product has a simple and durable structure, and is designed as an all-in-one machine with one specification, HYHJ-1330 I is applicable to adults, HYHJ-1330 II can be used for pediatrics and HYHJ-1330 III are for neonates intubation. Corresponding to 3 different sizes of disposable laryngoscope blades.


disposable laryngoscope blade
disposable laryngoscope

Features of Haiye HYHJ-1330 Series Single Use Video Laryngoscope

01.
Applicable People

Three sizes ergonomic design, to meet the needs of children to adults and difficult airway intubation

02.
One Body Design

Haiye disposable video laryngoscope is light weight and easy to use.

03.
Single Use Video Laryngoscope Display

2 million camera system, 3 inch monitor

04.
No Need to Sterilize

Single-use blades are individually sterile packaged, convenient, fast and reduce the risk of infection

05.
Single Use Video Laryngoscope Full Functions

Photo, video, freeze frame, high-definition output, can be connected to a large screen

06.
Long Life Span

3400 mAh high-capacity battery, can be used continuously for 6 hours

07.
Multilingual Single Use Video Laryngoscope

Choose the working language you prefer from multiple lingual choices

Specifications of Haiye HYHJ-1330 Series Single Use Video Laryngoscope

Item No.HYHJ-1330 I, II, III
CategoryDisposable
DescriptionVideo Laryngoscope
Item size:(L*W*H)11.9*8.5*19cm
Item weight<307 g
Power<2W
Screen size3 inch LCD
Screen resolution960*480
Tilt angle(back/forth)0°~135°
Rotation angle(left/right)0°~275°
Led light Illuminance≥3000 Lux
Camera pixelsDigital 2 Million
Viewing angle≥70°
Depth of field3~100mm
Camera Anti-fogYes
Image/ Video functionYes
Freeze frame functionYes
OutputAV output
Memory type32GB Micro SD card
Battery typeRechargable Li-ion
Battery capacity3400 mAh
Continuous working time≥6 hrs
Charging cycles>800 times
Charging time<4 hrs
Charging PortMicro USB
Input100-240V, 50 Hz
Output5V, 2000mA
